Passenger-car battery diagnostics
Verifying the weak link
Check battery capacity at every service, not just starting power.

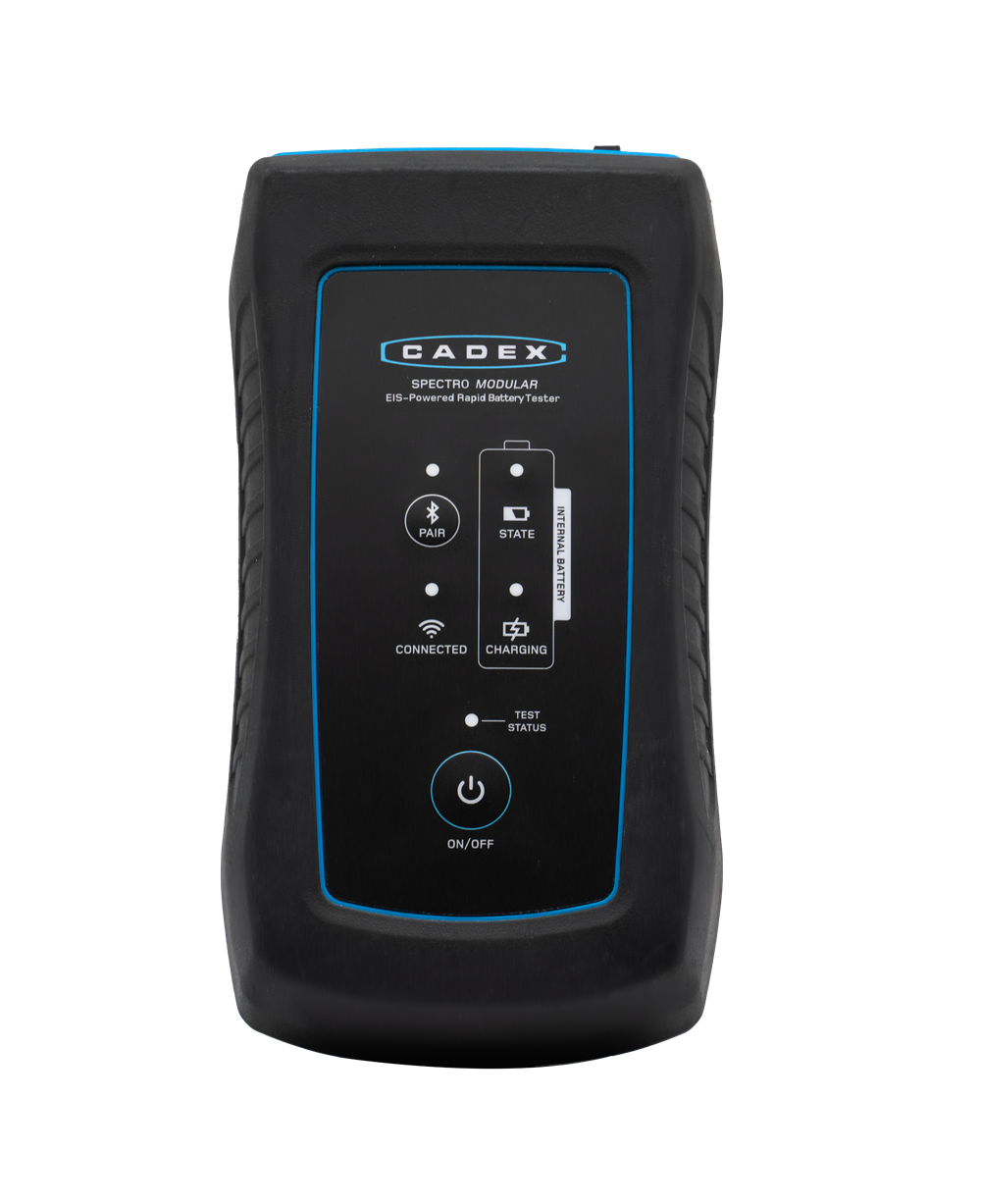

A starter battery can crank strongly today and still lack the reserve to last until its next service. The Spectro CM-12 uses Multi-Model EIS to classify capacity against a battery matrix and assess CCA and state of charge in about 30 seconds.
30 sec
Typical test time
27.5–125 Ah
Supported capacity
3–12 V
Standard test range
300–1,250 A
CCA test range
Capacity at every service
Capacity reveals what a cranking test can miss.
A battery may still deliver strong cold-cranking amps while its usable energy has already faded. In a Johnson Controls analysis of 800 AGM starter batteries, 48% became unusable due to low capacity, compared with 12% due to low CCA.
Reading capacity and CCA together helps identify batteries that may fall short before the next service. For passenger cars, a typical 40% Minimum Operational Reserve Energy (MORE) threshold supports a practical pass/fail decision.
48%
Failures linked to capacity fade
12%
Failures linked to low CCA
Source: Johnson Controls Power Solutions EMEA, AABC Europe 2017, Mainz, Germany.
From test to decision
Find a weak battery before it strands the driver.
Multi-Model EIS compares the battery response with a matrix built from batteries at known performance levels.
01
Measure
Connect the tester and scan non-invasively in about 30 seconds.
02
Classify
Assess capacity, CCA, state of charge, resistance, and anomalies against the selected matrix.
03
Act
Use the MORE threshold to return a pass/fail service decision and retain the result.
Fleet-ready diagnostics
Test before a weak battery disrupts the drive.
For passenger-car starter batteries, a capacity threshold is commonly set near 40%. A passing result supports continued service; a failing result calls for replacement even when cranking performance still appears strong.
- Open battery test platformDownload model-specific matrices for different vehicles, equipment, marine systems, and battery chemistries.
- QR-enabled historyAssociate batteries with historical readings, vehicle records, and work orders.
- Non-invasive testingAssess batteries in service without the heat and downtime of a full discharge test.
Connected records
Turn individual tests into fleet intelligence.

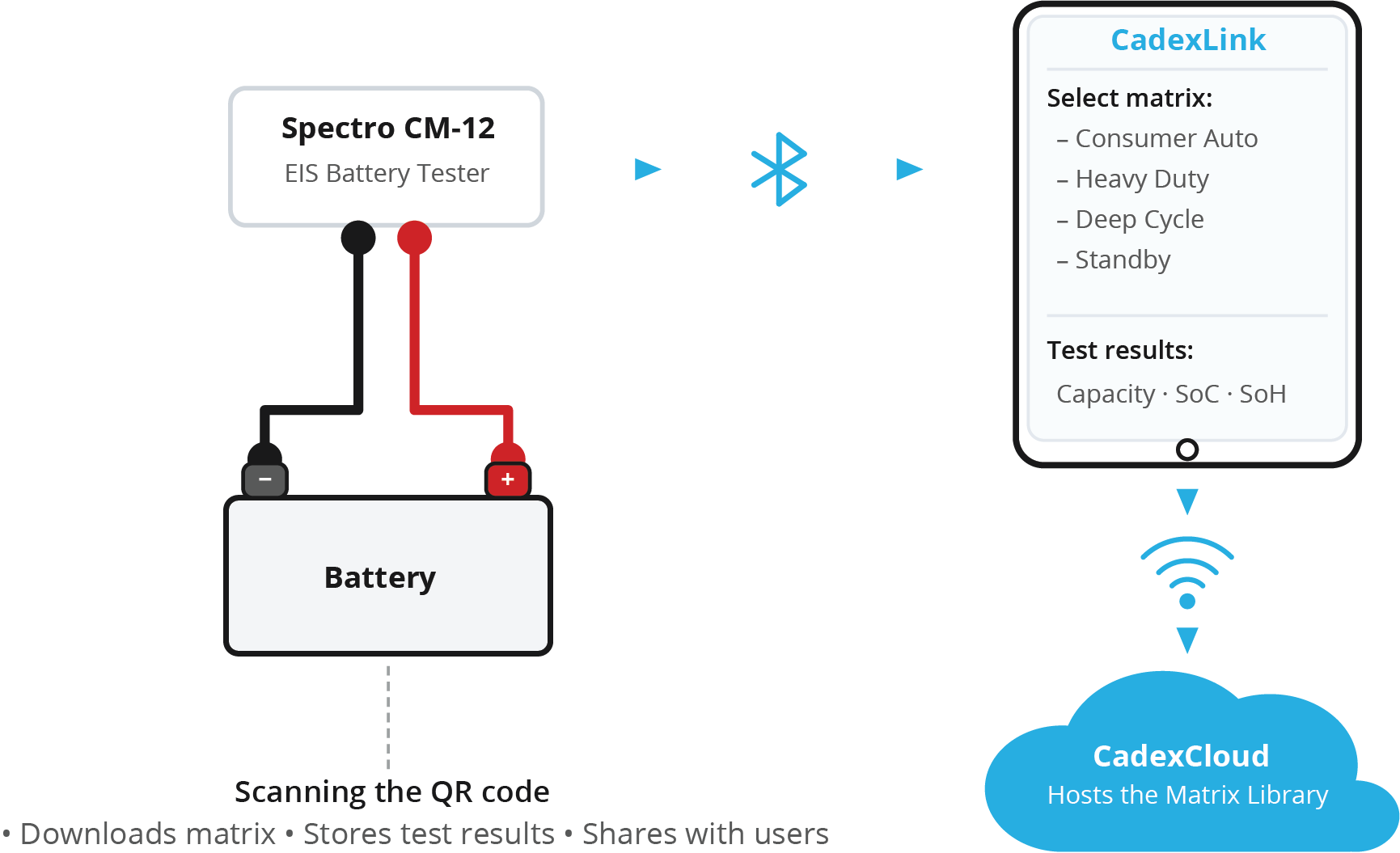

The tester connects to a host by Bluetooth and can optionally share results through CadexCloud over Wi-Fi. Local and cloud workflows can retain battery status, charge level, resistance, temperature, VIN records, and work orders.
Shared records give technicians, fleet supervisors, and owners a consistent view of battery condition across vehicles and service locations.
Battery aging trend
Cranking power is not the whole story.

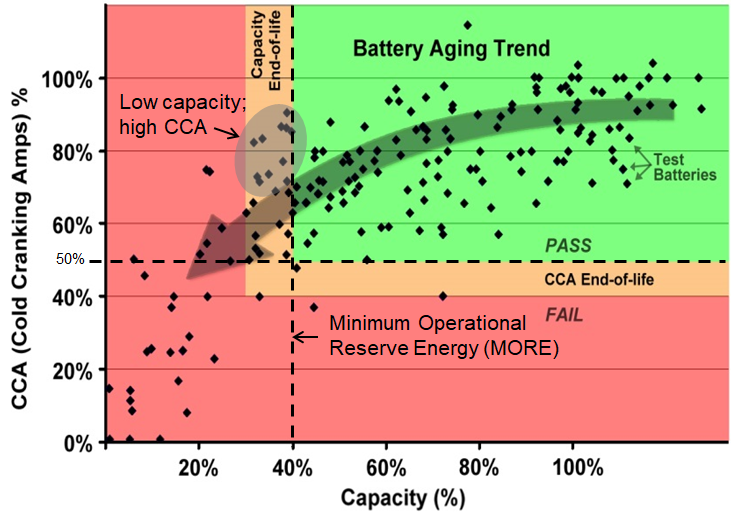

In the source document's plot of 175 starter batteries, capacity falls for many batteries while CCA remains in the operating range. A CCA-only check can therefore miss a battery with too little reserve for dependable service.
The document also cites a starter-battery study in which 48% of failures were linked to capacity fade, compared with 12% linked to low CCA. Measuring both supports a more complete decision.
Spectro CM-12
Test capabilities at a glance
Measurement
Capacity, CCA, state of charge, resistance, temperature, and battery anomalies using Multi-Model EIS.
Frequency and timing
Typical 30-second scan from 2,000 Hz to 4 Hz; lower-frequency configurations are available.
Battery range
3–12 V standard, 24 V on request; 27.5–125 Ah automotive matrix; 300–1,250 A CCA.
Battery support
Starter and deep-cycle batteries in lead-acid and lithium-based chemistries, subject to matrix availability.
Power and connections
Internal lithium-ion battery for approximately 250 tests, Bluetooth host connection, Wi-Fi cloud connection, and USB-C charging.
Physical and compliance
182 × 96 × 47 mm; 430 g net; IP52. Designed for applicable CSA, UL, CE, RoHS, REACH, RED, WEEE, ISTA 3A, and FCC Type A requirements.
