Floor-cleaner battery diagnostics
Battery check in seconds
Know whether a floor cleaner can finish its route before it leaves the equipment room.
Spectro CM-12 uses Multi-Model Electrochemical Impedance Spectroscopy to estimate usable capacity and state of charge in about 30 seconds. The non-invasive result helps service teams identify weak deep-cycle batteries without a lengthy discharge test.
30 sec
Typical test time
0–400 Ah
Supported capacity
6V
Test range
60%
Typical pass threshold
Capacity at every service
Runtime—not voltage alone—determines whether the cleaner finishes the route.
Deep-cycle batteries can appear charged while no longer storing enough usable energy for a complete shift. Capacity is the leading indicator of how long the machine can power its traction system, scrub head, pumps, and vacuum motor.
A capacity pass/fail threshold is commonly set at 60% for this application. A pass supports full-day service; a fail calls for replacement or reassignment to a less demanding route.
60% MORE
Minimum Operational Reserve Energy protects the runtime needed beyond the immediate cleaning task.
From measurement to action
Validate the battery against the route it must complete.
A battery matrix converts a complex electrochemical response into an application-specific service decision.
01
Measure
Scan the battery non-invasively across multiple frequencies to classify capacity, state of charge, resistance, and anomalies.
02
Validate
Compare the response with a matrix built from same-model batteries at known performance levels.
03
Decide
Apply the selected MORE threshold and return a clear pass, reassign, or replacement decision.

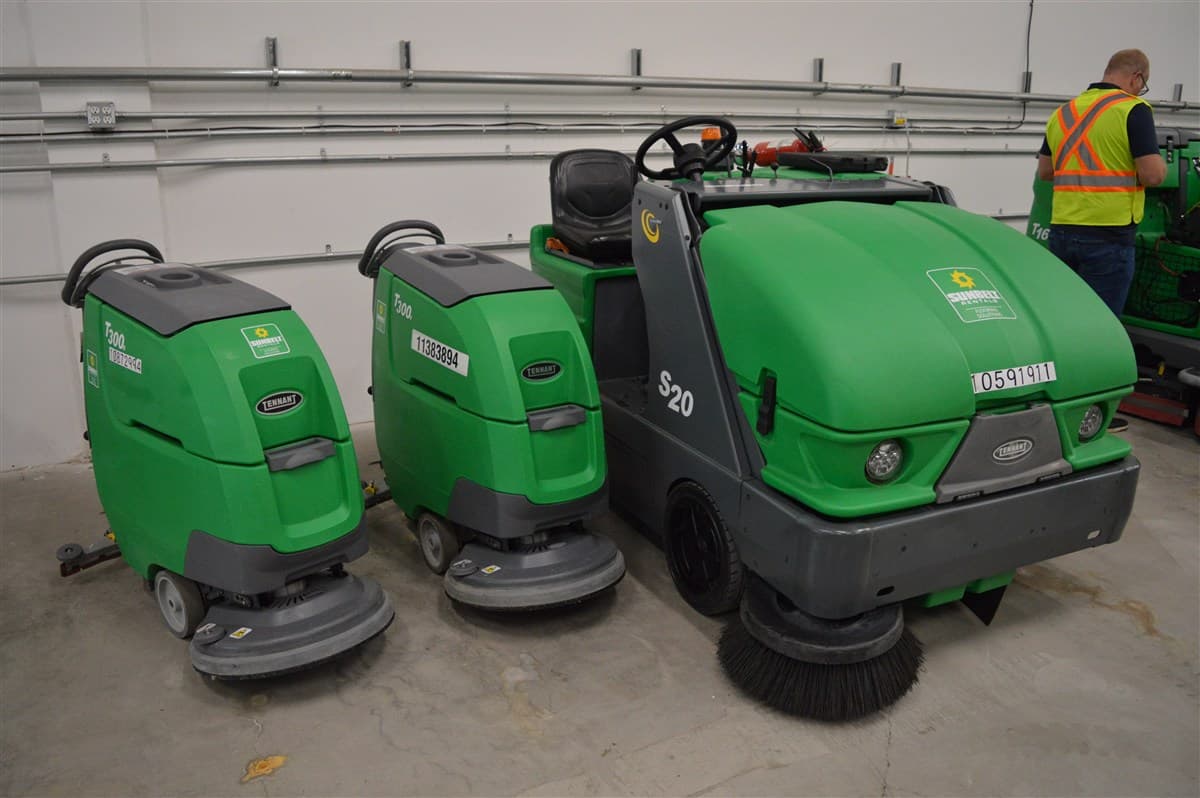

Fleet-ready diagnostics
Find the weak battery before a cleaning route is interrupted.
A battery-powered floor cleaner depends on a series-connected battery pack. One low-performing battery can shorten runtime for the entire machine, even when the remaining batteries are healthy.
- Check battery matchCompare the remaining state of charge after service. A well-matched string should typically remain within 10%.
- Avoid discharge-test downtimeClassify capacity without removing the cleaner from service for a lengthy full discharge.
- Use the right matrixDownload model-specific matrices for deep-cycle batteries and other supported applications.
Connected records
Give technicians and fleet supervisors the same battery history.

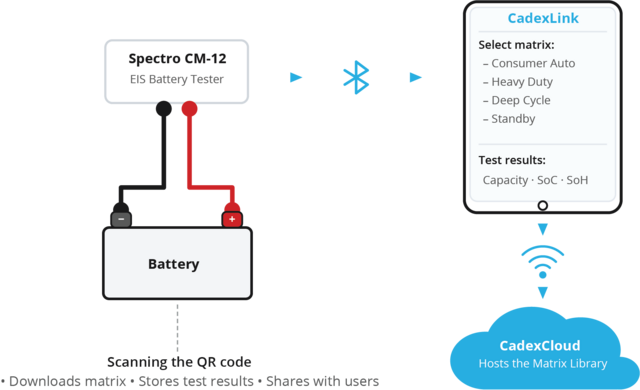

The tester connects to its host by Bluetooth and can optionally share results through CadexCloud over Wi-Fi. Local and cloud records can retain battery status, charge level, resistance, temperature, equipment records, and work orders.
With a QR code on each battery, a technician can retrieve its matrix and previous results before storing the latest reading.
Battery-string matching
The weakest battery governs the pack.
A series string performs only as well as its weakest member. Measuring each battery after a cleaning cycle exposes the unit that reaches a low state of charge first and limits the machine's usable runtime.
When replacement is required, matching the new battery to the capacity of the remaining pack helps restore balance without discarding serviceable batteries prematurely.
Spectro CM-12
Test capabilities at a glance
Measurement
Capacity, state of charge, internal resistance, temperature, and battery anomalies using Multi-Model EIS.
Frequency and timing
Typical 30-second scan from 2,000 Hz to 4 Hz; lower-frequency configurations are available.
Battery range
6 V; 0–400 Ah. Extended ranges are available on request.
Battery support
Deep-cycle and other supported battery models, subject to matrix availability.
Power and connections
Internal battery for approximately 250 tests, Bluetooth host connection, optional Wi-Fi cloud connection, and USB-C charging.
Physical and compliance
182 × 96 × 47 mm; 430 g net; IP52. Applicable CSA, UL, CE, RoHS, REACH, RED, WEEE, ISTA 3A, and FCC Type A compliance.
Keep cleaners ready for work
Make capacity part of every battery service.
Talk with Cadex about deep-cycle matrices, fleet workflows, and battery-specific requirements.
